Tripod Turnstiles
WAIST HEIGHT TURNSTILE
FEATURES
- Brushless Stainless-steel body with rigid, robust and durable structure
- Anti tail function with auto lock after turn
- Auto Arm drop/release during power failure
- Open signal with memory
- Automatic count indicating user number
- Open direction adjustable even during power off
- Prohibiting opposite direction movement
- Direction indication function showing access allow or denied

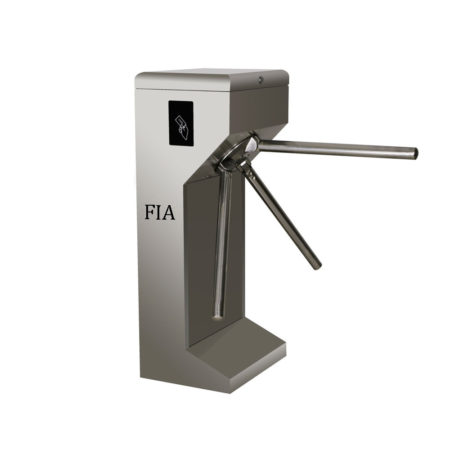

TRIO SS
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- ROTATION ANGLE: 120ᴼ
- PASSAGE WIDTH: 550 mm
- PASS SPEED: 30 person/min
- PROTECTION CLASS: IP 43
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 420mm x 330mm x 980mm

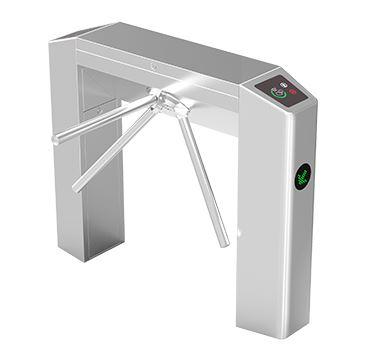

TRIO BS
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- ROTATION ANGLE: 120ᴼ
- PASSAGE WIDTH: 550 mm
- PASS SPEED: 30 person/min
- PROTECTION CLASS: IP 43
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 1200mm x 280mm x 980mm

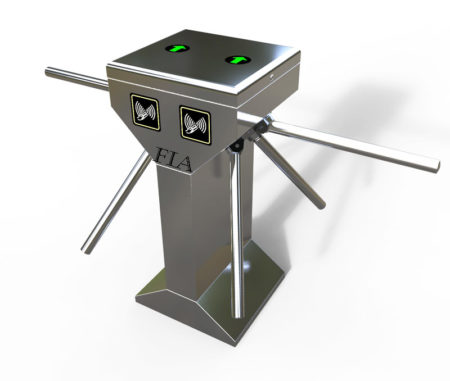

TRIO DS
- POWER SUPPLY: AC 220±10% 50 Hz
- BODY STRUCTURE: SS 304
- ROTATION ANGLE: 120ᴼ
- PASSAGE WIDTH: 550 mm
- PASS SPEED: 30 person/min
- PROTECTION CLASS: IP 43
- OPERATING TEMPERATURE: -15ᴼC to +60C
- DIMENSION: 420mm x 330mm x 980mm

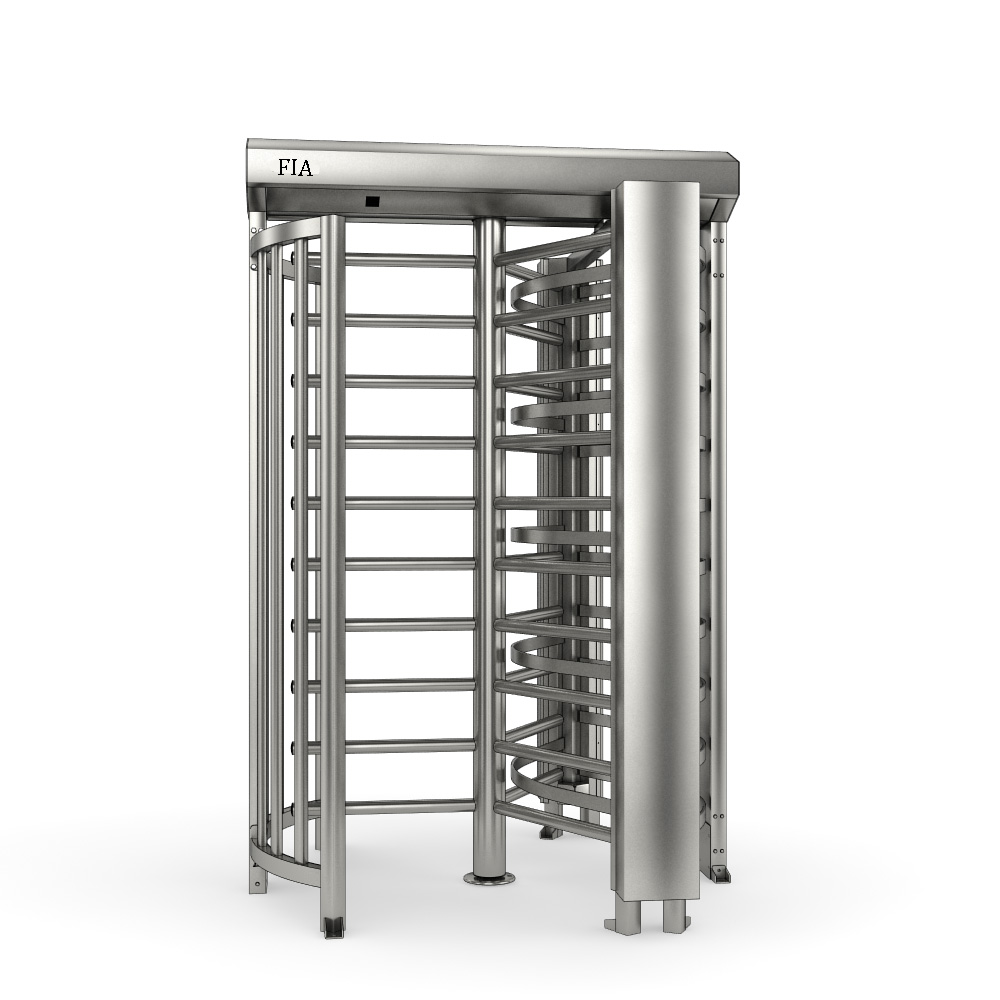

FULL HEIGHT TURNSTILE
FIT SL 30
FIT SL 30 (Single Lane)
The FIT SL 30 Full Height Turnstile Single Lane is a cutting-edge access control solution designed to ensure secure and efficient entry and exit management in a variety of environments. This robust and advanced turnstile system boasts several key features that make it a top choice for organizations seeking enhanced security and streamlined access control.
Key Features:
- Power Supply: The FIT SL 30 operates on a reliable AC 220V±10% 50 Hz power supply, ensuring consistent and uninterrupted performance.
- Body Structure: Constructed from high-quality SS 304 stainless steel, the turnstile’s body structure offers exceptional durability and resistance to corrosion, making it suitable for both indoor and outdoor installations.
- Rotation Angle: The turnstile’s rotation mechanism provides a 120-degree angle of rotation, allowing for efficient and controlled passage through the gate.
- Passage Width: With a generous passage width of 600 mm, the FIT SL 30 accommodates a wide range of users, including those with bags or small luggage items, without compromising on security.
- Pass Speed: This turnstile is designed to handle a passage speed of up to 30 persons per minute, making it ideal for locations with moderate to high traffic flow.
- Protection Class: With an IP43 protection rating, the FIT SL 30 is resistant to dust and moisture, ensuring consistent operation in various environmental conditions.
- Operating Temperature: The turnstile’s operational range spans from -15°C to +60°C, making it suitable for installation in diverse climates and weather conditions.
- Dimension: The FIT SL 30’s compact dimensions of 1600mm x 1500mm x 2300mm allow for flexible installation in spaces with limited real estate, while still providing robust access control capabilities.

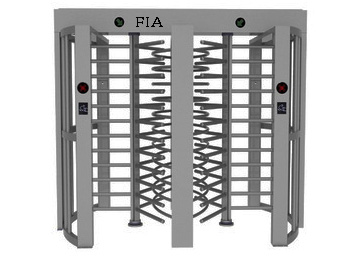

FIT DL 30
FIA FIT DL 30 (Dual Lane)
FIA’s FIT DL 30 Dual Lane Full height turnstile especially designed for Fare collection/Entry ticket access system with integration face capturing system to enhance stadium security. This dual-lane turnstile system incorporates a range of advanced features that make it an excellent choice for organizations seeking robust access control.
Key Features:
- Power Supply: The turnstile operates on a dependable AC 220V±10% 50 Hz power supply, ensuring consistent and reliable performance.
- Body Structure: Crafted from premium SS 304 stainless steel, the body structure of the turnstile offers exceptional durability and resistance to corrosion, making it suitable for both indoor and outdoor installations.
- Rotation Angle: With a 120-degree rotation angle, the turnstile provides controlled and secure passage through its dual lanes.
- Passage Width: Each lane offers a generous passage width of 600 mm, accommodating individuals with bags or small luggage while maintaining a high level of security.
- Pass Speed: The dual lane turnstile is designed to handle a passage speed of up to 30 persons per minute in each lane, making it ideal for locations with moderate to high traffic flow.
- Protection Class: Featuring an IP43 protection rating, the turnstile is resistant to dust and moisture, ensuring consistent operation in various environmental conditions.
- Operating Temperature: The operational temperature range spans from -15°C to +60°C, allowing for installation in diverse climates and weather conditions.
- Dimension: With dimensions of 2300mm x 1450mm x 2300mm, this turnstile provides a robust and secure access control solution while optimizing space utilization.
